Starting Information

Catapult Class Association Starting Information

CAD Model

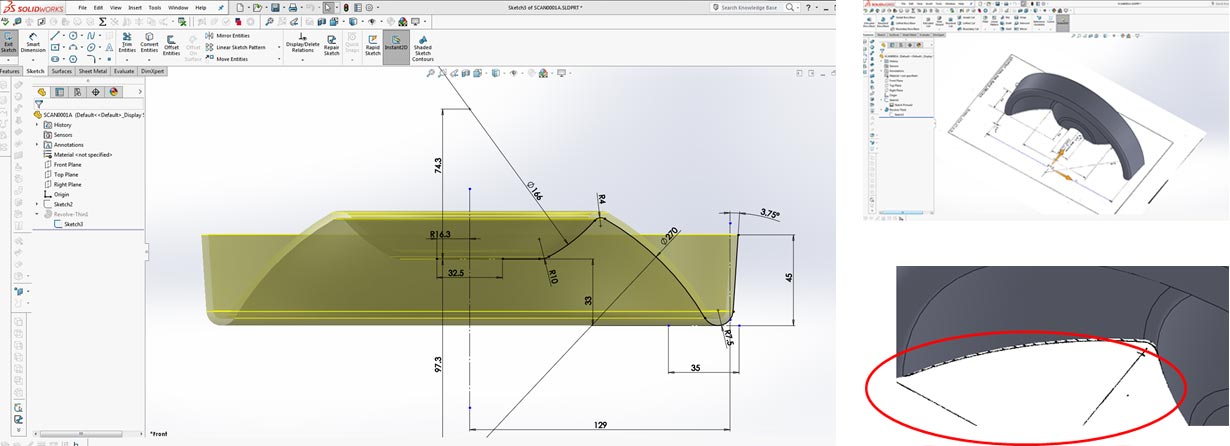

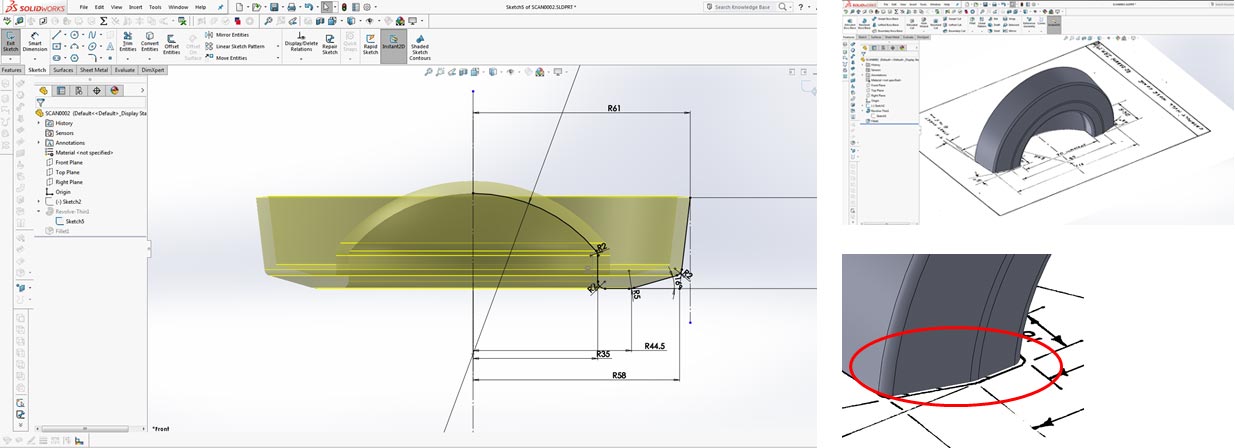

CAD model of each part created using the supplied sketch drawing as starting point.

The sketched profile provided does not 100% match the dimensions that are quoted against it. The CAD model has been created using the dimensions.

2D Drawings

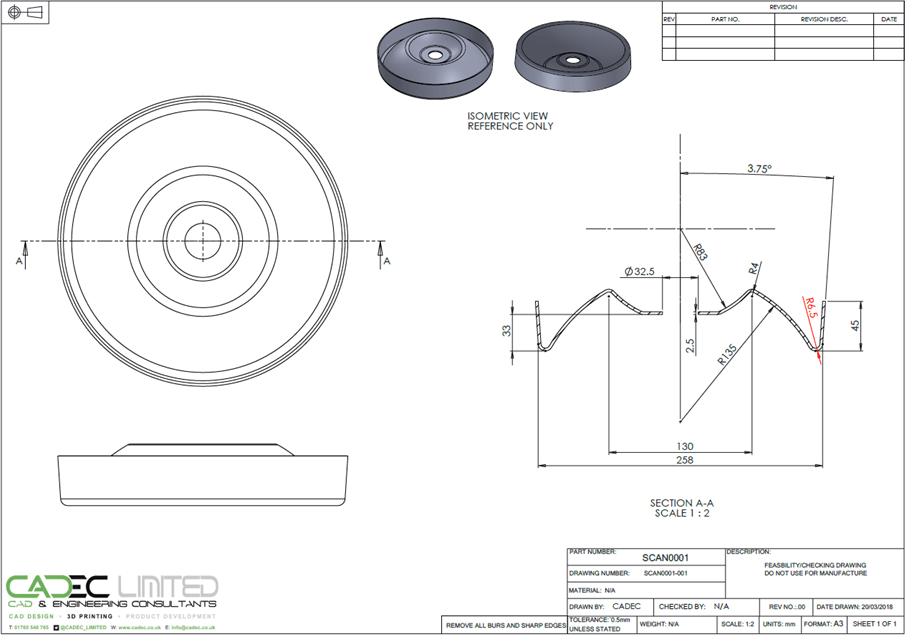

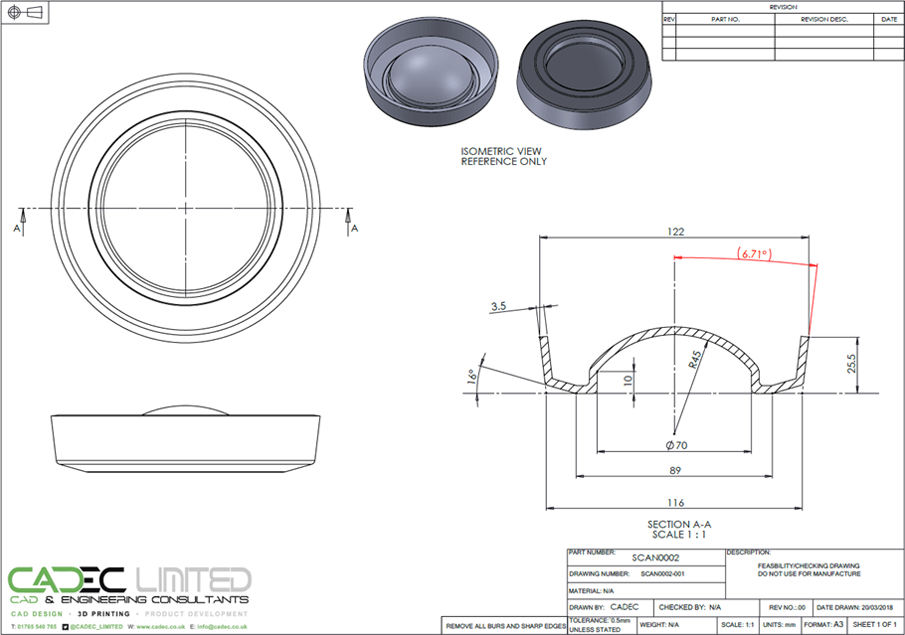

Simple 2D drawings created for each part. The dimensions in red are highlighted since they do not match the dimensions on the drawings provided. The reason for this is they are what we would describe as ‘driven’ dimensions, ie the values are as a result of the other dimensions that are driving the geometry.

STL File Created for each Part

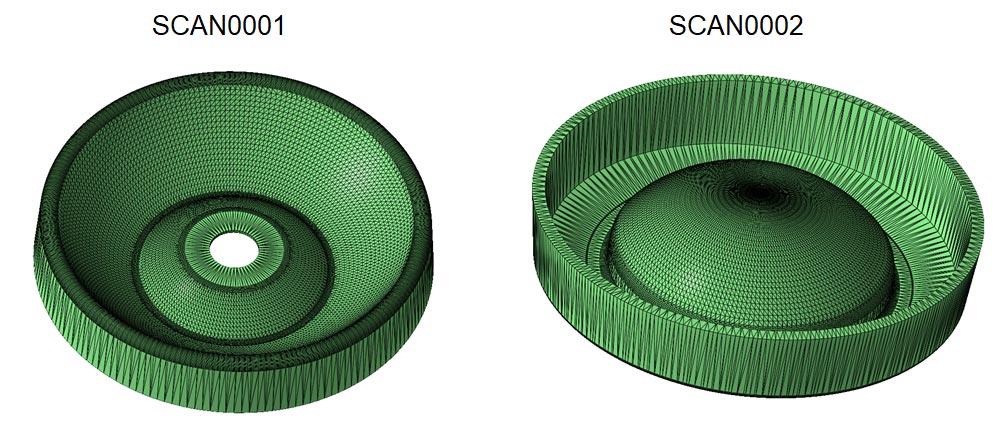

Catapult Class Association STL Files

Final 3D Prints

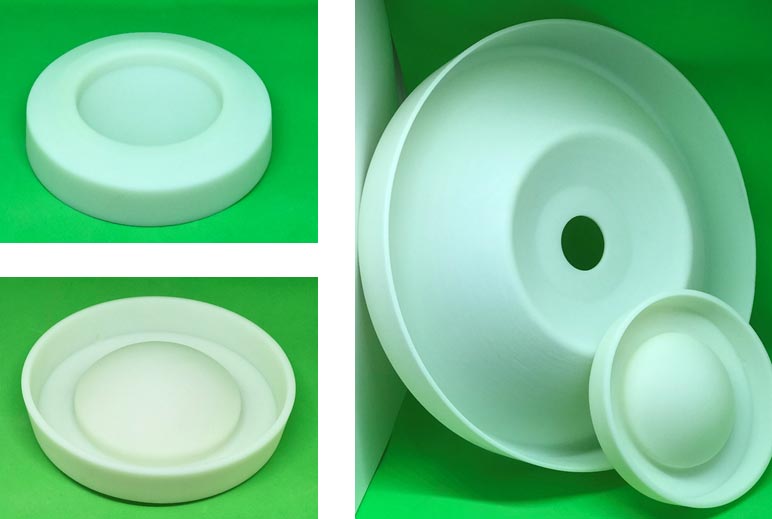

Catapult Class Association Final 3D Prints
